Elmasonic P 60 H Ultrasonic Cleaning Unit
Picture may vary from actual product.
Item number
51805
1 piece
Please log in to see the price information
will be ordered, not in stock
Questions about the product
With digital display, dry-run protected heating and two multi-frequencies of 37 and 80 kHz. With plastic carrying handles.
Advantages:
- Micro-processor controlled ultrasonic cleaning with multi-frequency technology (37/80 kHz) and specific functions for intensive cleaning;
- Electronic switch-down in case of too high output density possible;
- Sandwich power vibration systems;
- Automatic frequency switch-over for simultaneous coarse and fine cleaning;

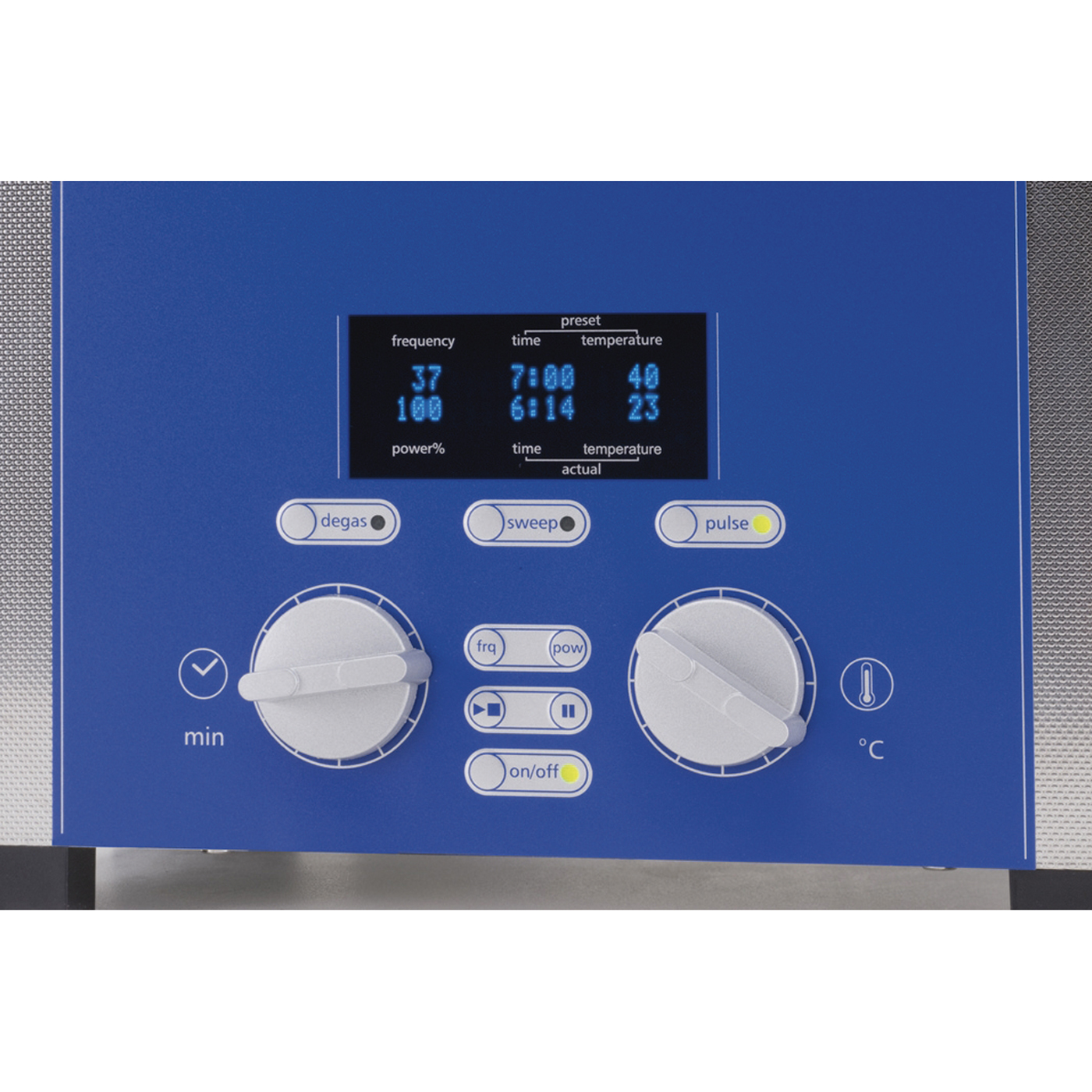

- Alphanumeric display shows unit parameters e.g. demand/current values;
- Storage of most recent unit parameters on switch-off;
- Fluid drain on the back of the unit with regulation on the side;
- Automatic circulation function during heating;
- Automatic safety switch-off at 90 °C water temperature to protect the objects to be cleaned;
- Automatic switch-off after 12 h operation;
- Vibration tank made of impact-resistant stainless steel.
Functions
- Standard: for applications like mixing, dissolving and dispersing;
Pulse: additionally selectable top-up of approx. 20 % by increase of the top output;
Sweep: for the optimum sound field distribution in the cleaning solution;
Degassing: for the fast degassing of samples and HPLC solvents as well as freshly mixed cleaning solutions;
Output control: optimum output control for specific applications;
Pause: interruption of the currently running application;
Auto start: automatic start at a pre-selected temperature.
Technical data:
- external dimensions unit 36.5 x 18.6 x 27.1 cm; internal dimensions tank 300 x 151 x 150 mm; 220-240 V, 50/60 Hz; ultrasonic frequencies 37/80 kHz; total consumption 680/650 W; effective ultrasonic output 180/150 W, ultrasonic top output max. 720/600 W; heating output 500 W; filling volume max. 5.75 l; sound pressure level 59 dB(A); ultrasonic level 94 dB(A); fluid drain ⅜"; 5.1 kg; stainless steel housing.
User instructions
Accessories for this item
Insertion lid, for Elmasonic models 60, 150, 180, 300
will be ordered, not in stock
Item no.: 51811
1 piece
Insert basket, for Elmasonic models 60, 255 x 115 x 75 mm
will be ordered, not in stock
Item no.: 51812
1 piece
